Manhattan PCB Fabrication Files
Cutting copper clad board is simple enough but it can be time consuming if you need to make alot of them. Inside these KiCad project folders you will find gerber and drill fabrication files (in a folder, _Fab[…]) which you can send to JLC, PCBWay, etc. for production.

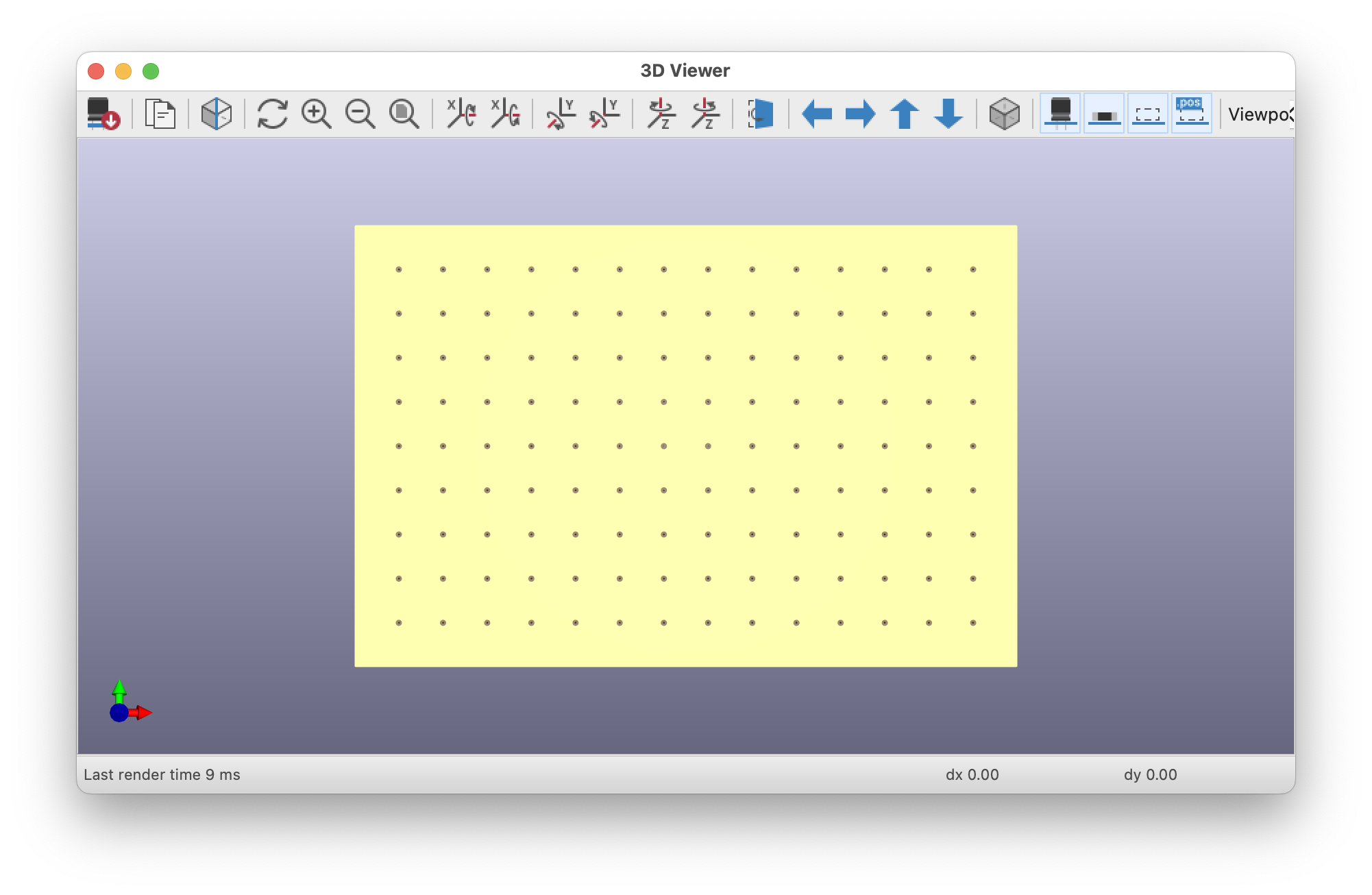

Manhattan Grid

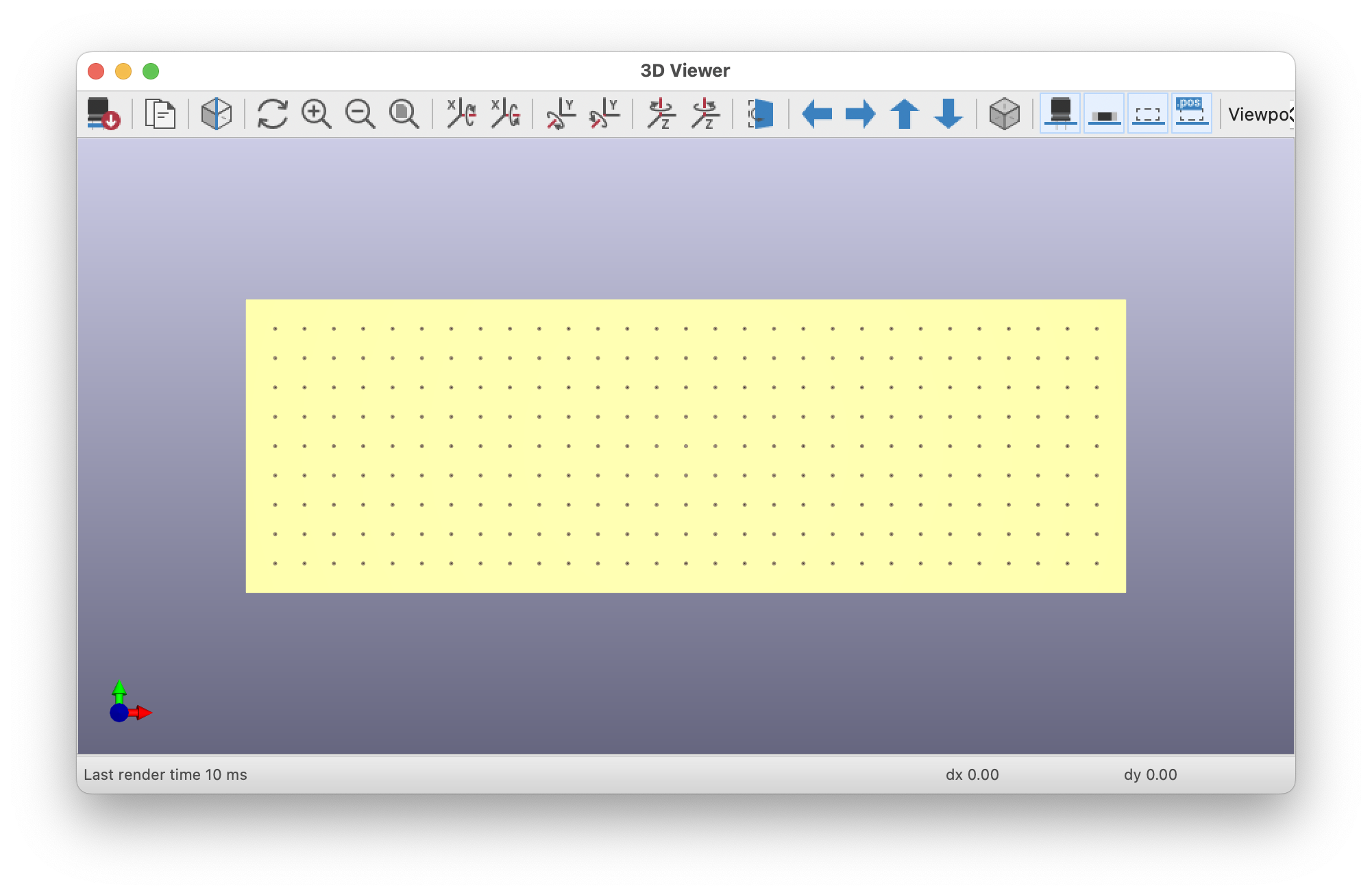

Manhattan Grid XL

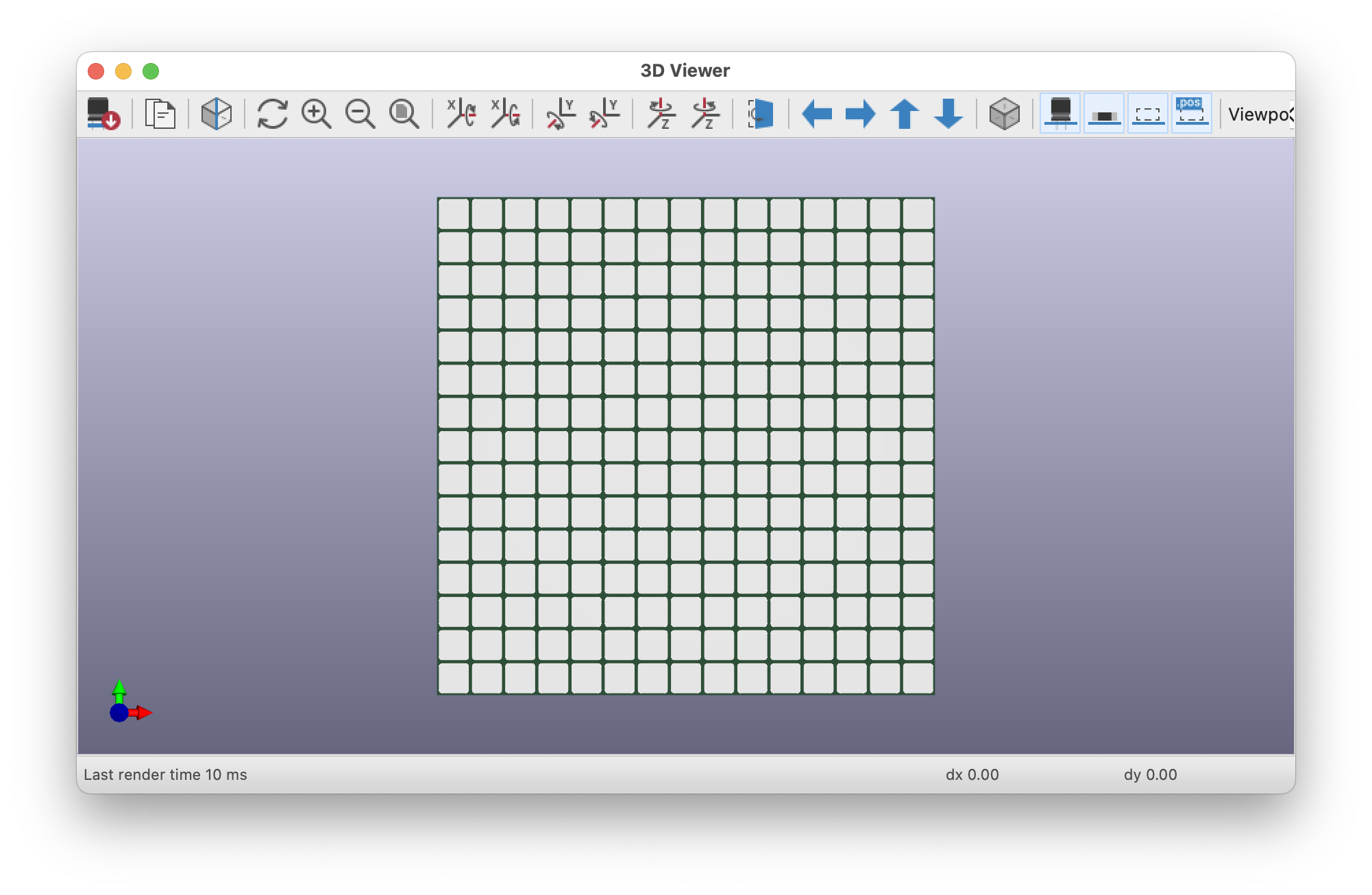

Manhattan Block
- Make sure to include the following note: “V-Cut on all interior edges”

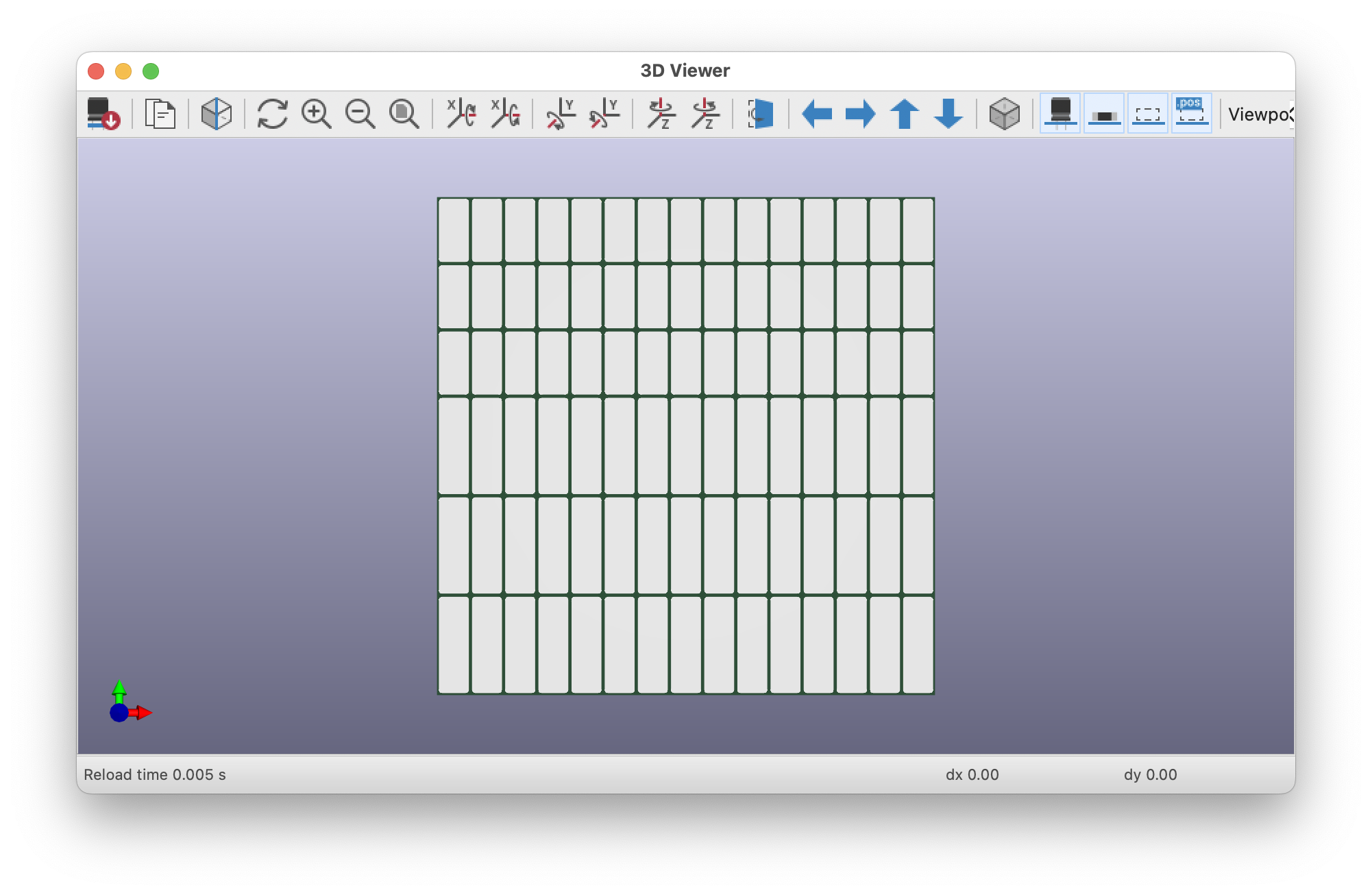

Manhattan Rail
- Make sure to include the following note: “V-Cut on all interior edges”
